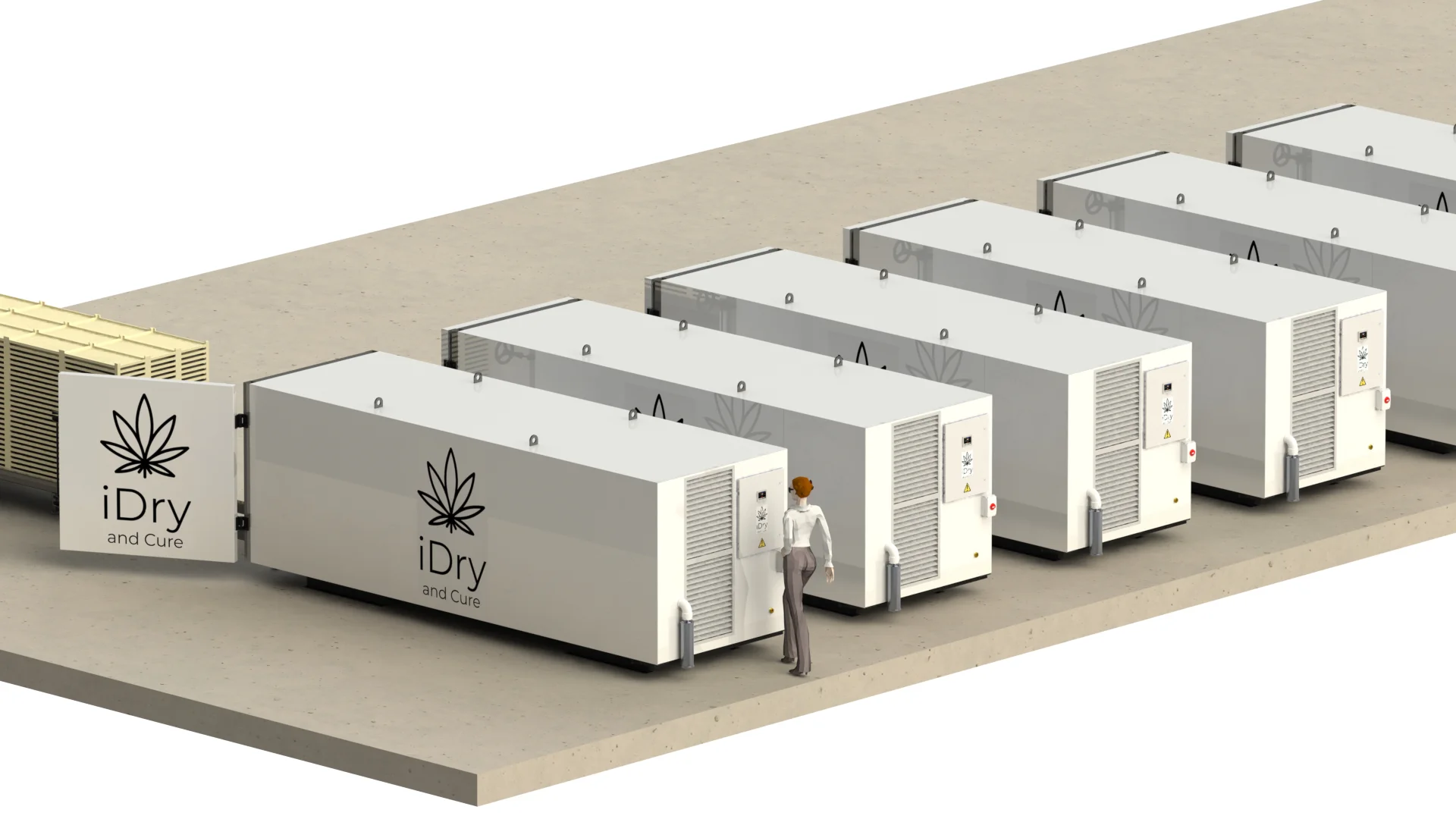

iDRY&CURE - LARGE INSTALLATION 4.jpg

iDry&Cure Plus

Specifications

Max. Capacity: 696 Vented Trays 30”x16”x2”
External Dimension: 25ft L x 8ft W x 8ft T
Trays: 30in long x 16in wide x 2in deep, 140F max temperature, perforated bottom
Power requirement: 208-230V 1PH 80A
Energy Consumption:
Electrically Heated: 8 kw/h average
Drying Time: Approximately 24hrs
Max. Initial Moisture Content by oven weight: 75%
Heating: Electric
Installation: Installed in above freezing and dry space, water connection, 208-230V power. For best performance ambient temperature should be kept above 60F.
Loading: Ramp loaded using provided dollys
Water requirement: 0.75 GPM (recirculation optional)
Controls: Touch Screen
Total Weight of equipment: 11,500lbs
1 Year Limited Warranty

Price: $99,000 ($109,000 starting Jan 1 2020)

Additional:

Low Temp Trays 1 full set: (696) Vented 30”x16”x2” Drying Trays (Drying/Curing only), (24) Dolleys, (24) Solid Tray Tops: $22,320

High Temp Trays 1 full set: (696) Vented 30”x16”x2” Drying Trays (Drying/Curing/Decarb), (24) Dolleys, (24) Solid Tray Tops: $30,000

FDA, USDA, NSF & CE Compliant

Select Options

  • Left Hand Door Swing

  • Right Hand Door Swing

  • 2 Year Extended Limited Warranty +$1,500

iDry PLUS Deposit
5,000.00

Due today to complete your order. Your design can be modified after ordering. Balance due prior to shipping. Terms&Conditions
